- Classic "blues" guitar tones with tube amp simulation
- Warm distortion and overdrive
- Responds to nuance and volume changes
- AC adaptor or 9V battery operation
- BOSS five-year warranty
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater

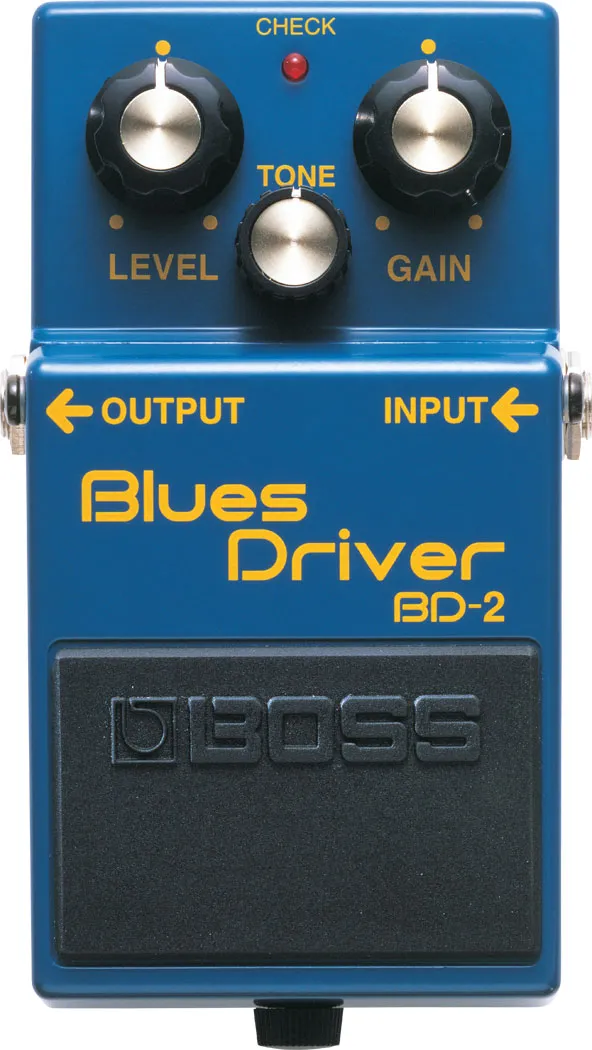

- Controls
- Pedal switch
GAIN knob
TONE knob
LEVEL knob - Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack - Power Supply
- Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 20 mA
- Expected battery life under continuous use
- Carbon: Approx. 24.5 hours
Alkaline: Approx. 44 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22) - Option (sold separately)
- AC adaptor (PSA series)
- Size and Weight ( incl. battery )
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight
- 360 g
13 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
