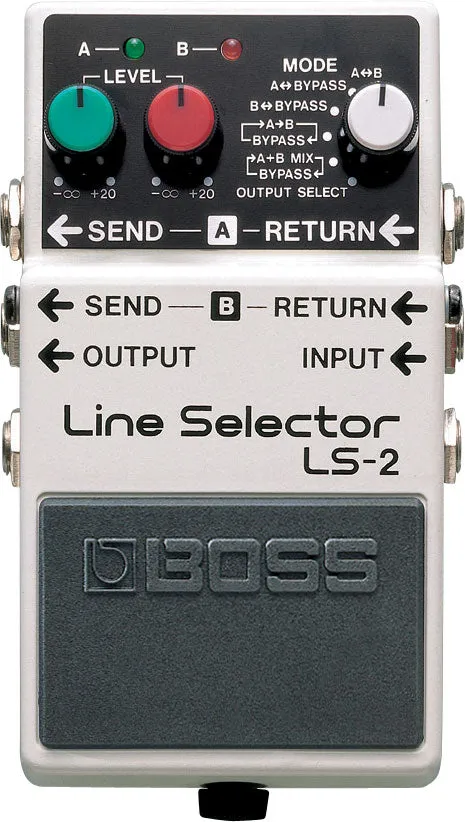

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.

• Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
• Provides two line loops with Level control and six looping modes
• Can supply power to several BOSS compact pedals when used with an AC adaptor
• The ideal power supply and master switching unit for multiple effects setups
• BOSS 5-year warranty

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohms

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

Controls

MODE selector switch
LEVEL knobs A/B
Pedal switch

Indicator

Line indicator A/B (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
SEND jacks A/B: 1/4-inch phone type
RETURN jacks A/B: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN/OUT jack

Power Supply

Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

30 mA

Expected battery life under continuous use

Carbon: Approx. 14.5 hours
Alkaline: Approx. 29.5 hours
* These figures will vary depending on the actual conditions of use.

Accessories

Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

AC adaptor: PSA series
Parallel DC Cord: PCS-20A

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

430 g
1 lb

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
